Understanding Limelight's Two-Filter Design: How It Works and How to Maintain It

Hot Spring's Limelight Collection spas use a filtration approach that is a little different from a standard single-filter spa, and understanding why can save you some confusion the first time you go looking for a replacement cartridge. Rather than running all your water through one filter, Limelight models split the job between two dedicated filters, each handling a different part of the spa's circulation. This guide explains how that system works, why it exists, and how to keep both filters performing the way they should.

What the Two-Filter Design Actually Is

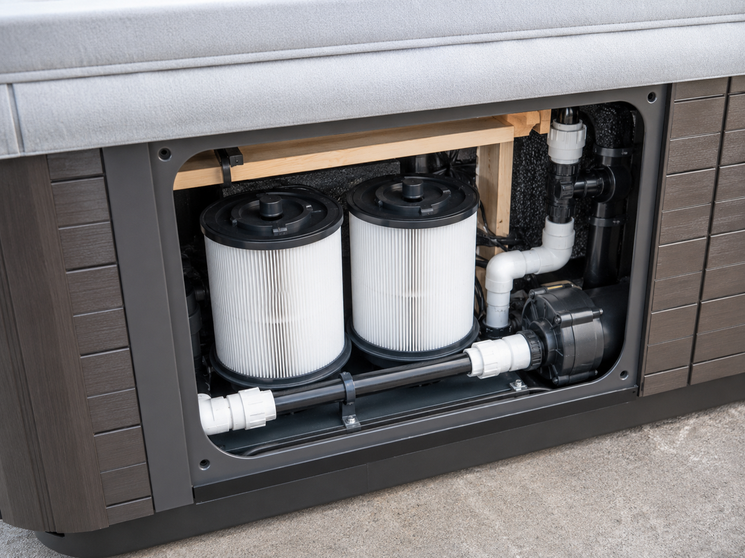

Limelight models across the collection (Flash, Pulse, Beam, Flair, and Prism, among others) use two separate filter cartridges rather than one. One filter is dedicated to the circulation pump, which runs continuously at low speed to keep water moving and sampling temperature even when the jets are off. The second filter is dedicated to the jet pumps, handling the higher volume of water that moves through the system whenever the jets are actively running. Together, the two cartridges provide roughly 100 square feet of total filtration area, split evenly at about 50 square feet each.

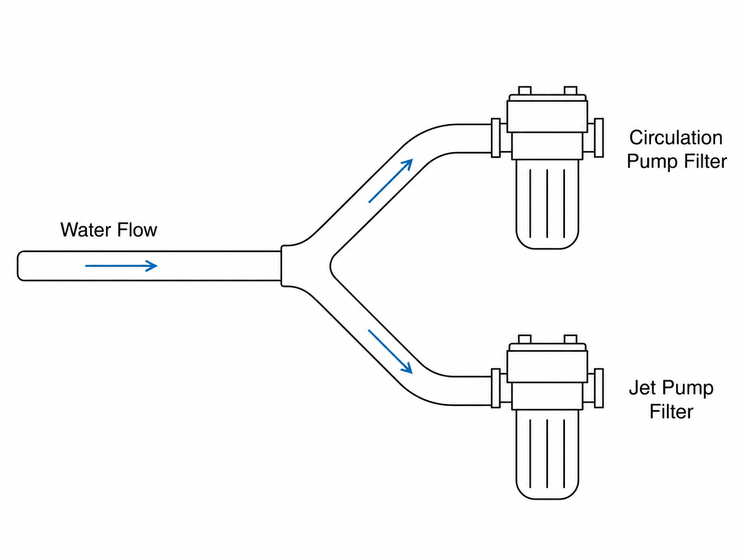

Why Split Filtration Into Two Cartridges

A single filter trying to handle both continuous low-speed circulation and high-volume jet flow has to compromise somewhere, either restricting flow more than ideal during jet use or being sized larger than necessary for simple circulation. Splitting the job lets each filter be matched to the specific flow conditions it actually handles, which increases the total effective filtration area without requiring an oversized single cartridge. The practical result is cleaner water with less flow restriction and, generally, less frequent clogging than a comparable single-filter system handling the same total water volume.

How the Circulation Pump Filter Works

The circulation-pump filter sees continuous, low-speed water flow around the clock, since Limelight's SilentFlo circulation pump is designed to run using very little energy (less than a standard 40-watt light bulb) while still keeping water sampling and moving between active jet sessions. Because this filter is working constantly rather than only during jet use, it tends to accumulate fine debris steadily over time rather than in sudden bursts.

How the Jet-Pump Filter Works

The second filter only sees significant flow when the jets are actively running, since that is when the jet pumps push a much larger volume of water through the system at once. This filter is more likely to accumulate debris in proportion to how often and how long the jets get used, so a household that runs jets frequently will typically need to service this filter more often than the circulation filter.

The SilentFlo Circulation Pump's Role

The SilentFlo circulation pump is worth understanding on its own, since it is the component driving continuous flow through the circulation filter around the clock. Because it uses less energy than a standard household light bulb while running, it can operate continuously without meaningfully affecting your energy bill, which is what allows Limelight spas to sample water temperature and maintain filtration constantly rather than only during scheduled filter cycles. This continuous low-speed operation is also why the circulation filter tends to load up gradually and predictably rather than in sudden jumps tied to specific use sessions.

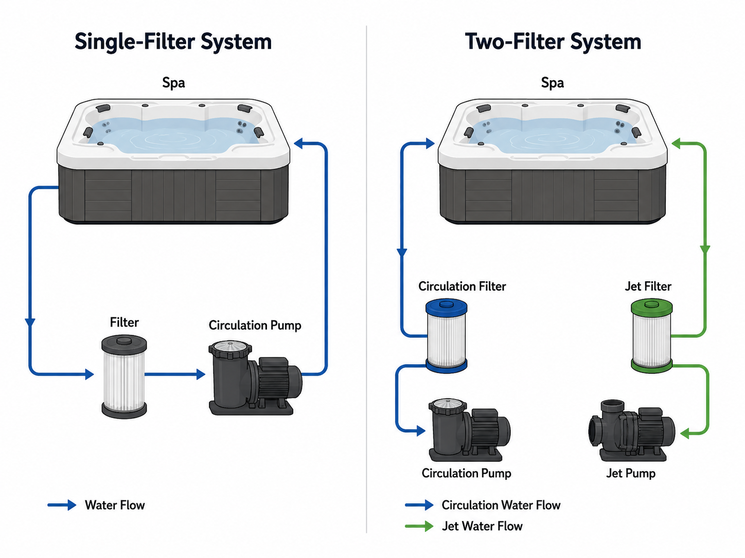

How This Compares to a Single-Filter Spa

In a typical single-filter spa, one cartridge has to handle both the gentle, continuous circulation flow and the much higher volume that comes through when jets are running. That single cartridge is often sized as a compromise between the two flow conditions, which can mean more restriction during jet use, faster clogging under heavy use, or simply less total filtration area than a two-filter system provides for a similarly sized spa. Limelight's approach trades a small amount of added complexity (two cartridges to track instead of one) for meaningfully better filtration performance across both use conditions.

Maintenance Schedule for Both Filters

Rinse Both Filters Every Two to Four Weeks

A basic garden hose rinse, working from the inside out along the pleats, removes surface debris from both cartridges. Since the two filters see different flow patterns, it is worth checking them independently rather than assuming both need service on exactly the same schedule.

Deep Clean Periodically With a Filter Cleaner Solution

Beyond a simple rinse, soaking each cartridge in a dedicated filter cleaning solution every couple of months removes oils and fine particles that a hose rinse alone will not fully clear. This step matters more for the jet-pump filter in households with heavy jet use.

Replace Both Filters on a Regular Cycle

Even with regular cleaning, filter media breaks down over time and eventually stops filtering effectively no matter how clean it looks. Replace both cartridges on a routine cycle rather than waiting for a visible problem, since a filter that looks fine can still be past its effective service life.

Signs One of Your Two Filters Needs Attention

Because the two filters handle different jobs, they also tend to show problems differently. Reduced circulation, slower temperature recovery, or the control panel sampling water less consistently can point to the circulation filter needing service. Reduced jet pressure or noticeably weaker jet performance during active use more often points to the jet-pump filter. If you notice a problem, checking the filter matched to the affected function first will usually get you to the answer faster than assuming both are equally at fault.

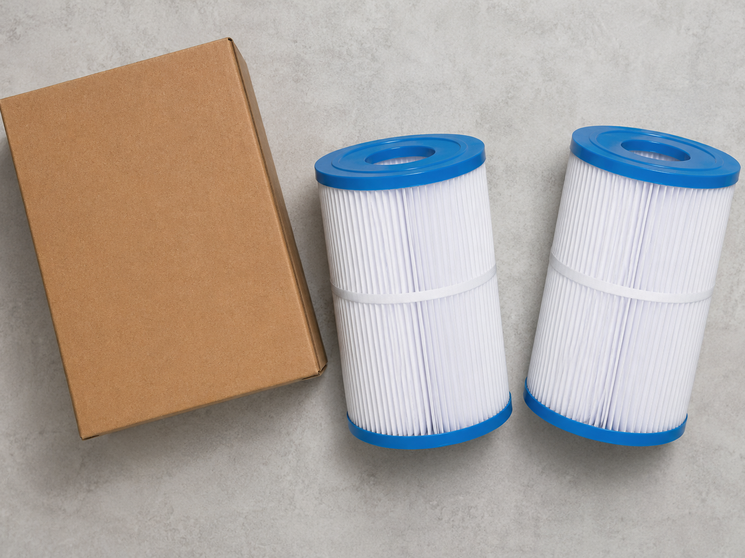

Keeping a Replacement Pair on Hand

Because Limelight's system relies on two cartridges working together, it makes sense to keep a spare pair on hand rather than ordering reactively after noticing a problem. Running low on just one of the two, or discovering a mismatched replacement after the fact, is a common and easily avoidable source of frustration for owners who only think about filters once something already seems off.

Ordering the Right Replacement Cartridges

Since Limelight spas use two filters rather than one, it is worth confirming you are ordering the correct pair for your specific model rather than assuming a single generic cartridge will work for the whole system. Some models use identical cartridges for both positions, while others may use slightly different specifications for the circulation versus jet-pump position. Checking your model's filter chart before ordering avoids a mismatched replacement that does not seat or perform correctly.

Why This Matters for Overall Water Quality

More total filtration area, split appropriately between continuous and high-volume flow conditions, means water spends less time waiting to be filtered and picks up fewer opportunities to develop cloudiness or odor between cleanings. Keeping both filters on a proper maintenance schedule is one of the most directly impactful things a Limelight owner can do for water clarity, arguably more so than any single water care chemical or additive.

Frequently Asked Questions

Do both Limelight filters need to be cleaned on the exact same schedule?

Not necessarily. The jet-pump filter often needs more frequent attention in households with heavy jet use, while the circulation filter accumulates debris more steadily and predictably. Check both independently rather than assuming identical wear.

Can I run my spa with only one filter installed if the other needs replacing?

This is not recommended. Each filter is sized and positioned for its specific role in the system, and running without one leaves that portion of your circulation unfiltered.

How do I know if I need one or two different cartridge types for my model?

Check your Limelight model's filter specification chart or your owner's manual. Some models use identical cartridges in both positions, while others differ, so confirming before ordering avoids a mismatched fit.

What happens if I let both filters go too long without cleaning?

Reduced flow, slower heating recovery, weaker jet performance, and cloudier water are all likely outcomes. Neglecting both filters compounds these issues faster than a single-filter system would show the same problems.

Is 100 square feet of total filtration unusually high for a spa this size?

It is on the higher end for the Limelight Collection's size class, and it is a deliberate design choice aimed at reducing maintenance frequency and improving water clarity between service intervals.

Does the SilentFlo pump running constantly use significant electricity?

No, it is specifically designed to draw very little power, comparable to a standard household light bulb, which is what makes continuous low-speed circulation practical without a meaningful energy cost.

Limelight's two-filter design is a genuine engineering choice, not just a cost or complexity increase, and it delivers real benefits in water clarity and reduced flow restriction when both filters are kept on a proper maintenance schedule. Treat the two cartridges as a matched pair doing related but distinct jobs, and your Limelight spa's filtration will perform the way it was actually engineered to, season after season.
